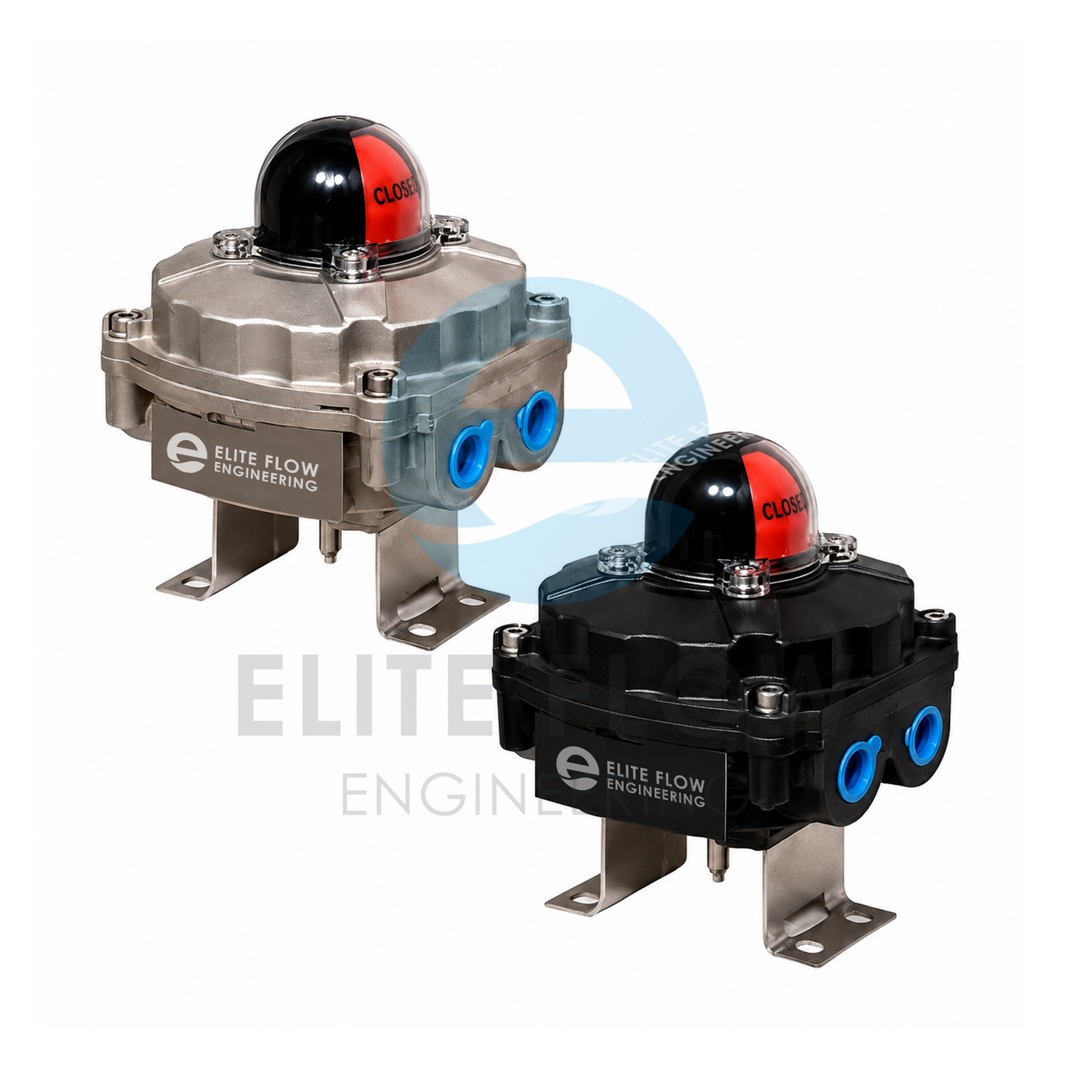

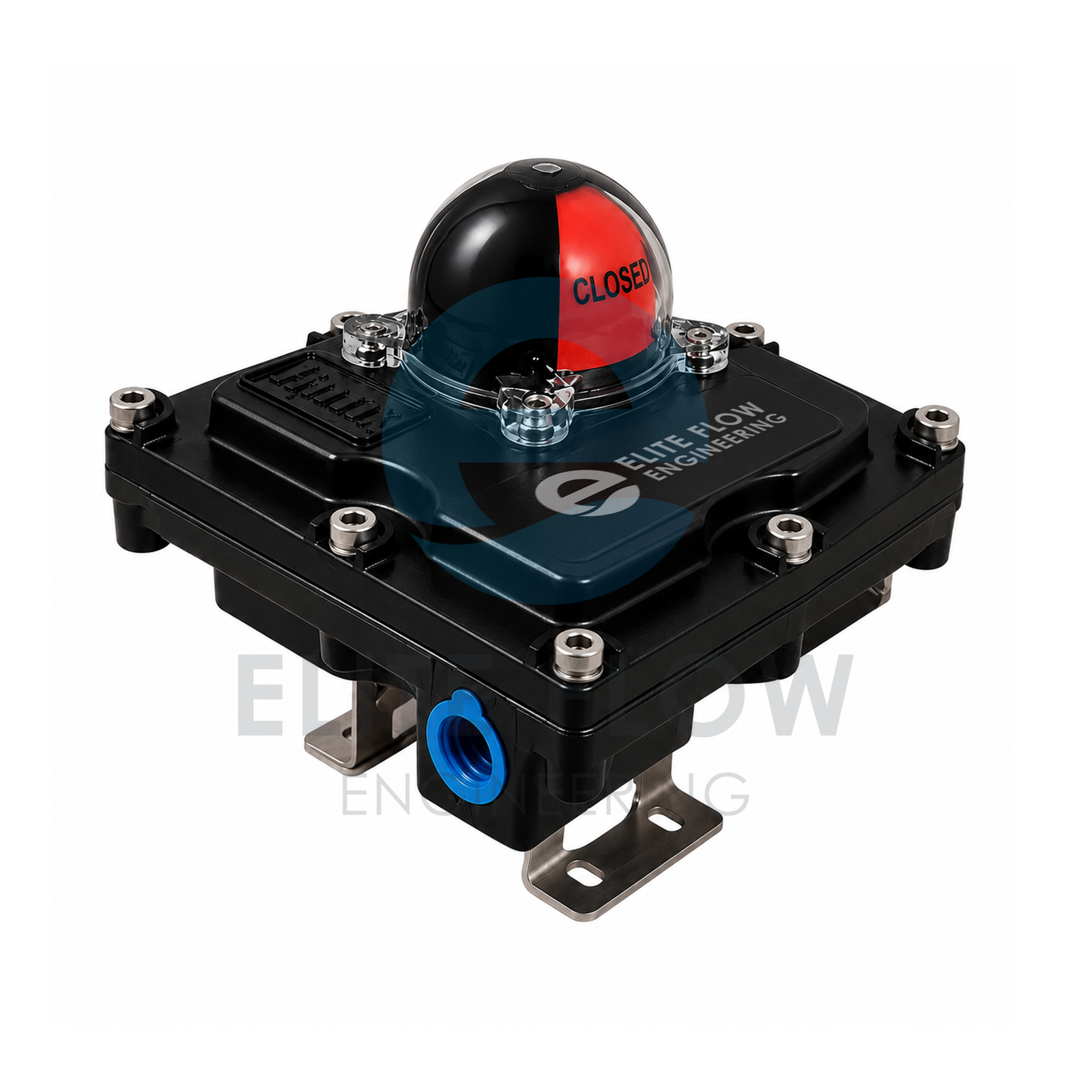

Limit Switch
- Home
- Products
- Valves & Accessories
- Limit Switch
Ask For A Quote
Connect with us!
Need help selecting the right product for your application?
Product Catalogue
Explore our wide range of high-quality products engineered for precision and durability.
Specifications
| Type | Mechanical Switch x 2 | Proximity Sensors P&F Make |
| Switch | Honeywell | P&F | Other on Request |
| Switch Rating | AC 250V 3A, 125V 5A | DC 250V 0.2A, 125V 0.4A, 30V 4A |
| Enclosure Protection | IP 67 |
| Ambient Temperature | -20°C ~ 80°C |
| Conduit Entry | NPT 1/2″ (Other Options Available on Request) |
| Terminal | 8 Points |
| Mounting Bracket | NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available on Request) |
| Material | Aluminium Pressure Die Cast |
| Enclosure Cover / Body | Aluminium Diecast, Powder Coated |
| Position Indicator Dome | Polycarbonate |
| Position Indicator | Yellow/Red Open/Close Indicator (ABS) |
| Shaft (Operating Rod) | Stainless Steel |
| Switches | 1 NO + 1 NC / 2 NOS. (As per Client) |
| Cable Entry | 1/2″ NPT (Other on Request) |
| Terminal | Standard Screw Terminal |
Specifications
| Type | Mechanical Switch x 2 | Proximity Sensors P&F Make |
| Switch | Honeywell | P&F | Other on Request |
| Switch Rating | AC 250V 3A, 125V 5A | DC 250V 0.2A, 125V 0.4A, 30V 4A |
| Enclosure Protection | IP 67 |
| Ambient Temperature | -20°C ~ 80°C |
| Conduit Entry | NPT 1/2″ (Other Options Available on Request) |
| Terminal | 8 Points |
| Mounting Bracket | NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available on Request) |
| Material | Aluminium Pressure Die Cast |
| Enclosure Cover / Body | Aluminium Diecast, Powder Coated |
| Position Indicator Dome | Polycarbonate |
| Position Indicator | Yellow/Red Open/Close Indicator (ABS) |
| Shaft (Operating Rod) | Stainless Steel |
| Switches | 1 NO + 1 NC / 2 NOS. (As per Client) |
| Cable Entry | 1/2″ NPT (Other on Request) |
| Terminal | Standard Screw Terminal |
Specifications
| Body Material | 1CF8, CF8M, CF3M (Others available on request) |
| Trim / Spindle | Stainless Steel SS304, SS316, SS316L |
| Size | 15mm to 80mm |
| End Connection | Female Screwed BSP/NPT, Flanged, Triclover |
| Material | Carbon Steel, Stainless Steel, Monel, Duplex, Alloy 20, Hastelloy B/C, Aluminum Bronze, PFA Lined |
| Leakage | Drop Tight/Bubble Tight, Class IV ANSI B16, 104,1976 |
| Actuator Body | SS 304 Pressed |
| Actuator Cover Flange | ASTM A351 Gr. CF8 (SS304) Investment Die-Cast |
| Actuator Spring | Spring Steel (IS 4454 Gr. III) |
| Actuator Port Connection | 1/4″ BSP (NPT on request) |
| Actuator Operating Pressure | 3.5 to 7 Bar(g) |
| Actuator Position Indicator | NYLON |
| Actuator Operating Cycles | 350 to 650 Cycles / Hr. |
